kchilites

3" C-Series C3 LED Pair Pack System

3" C-Series C3 LED Pair Pack System

Regular price $184.99 USD
Regular price Sale price $184.99 USD
Sale Sold out
Beam Pattern
Size

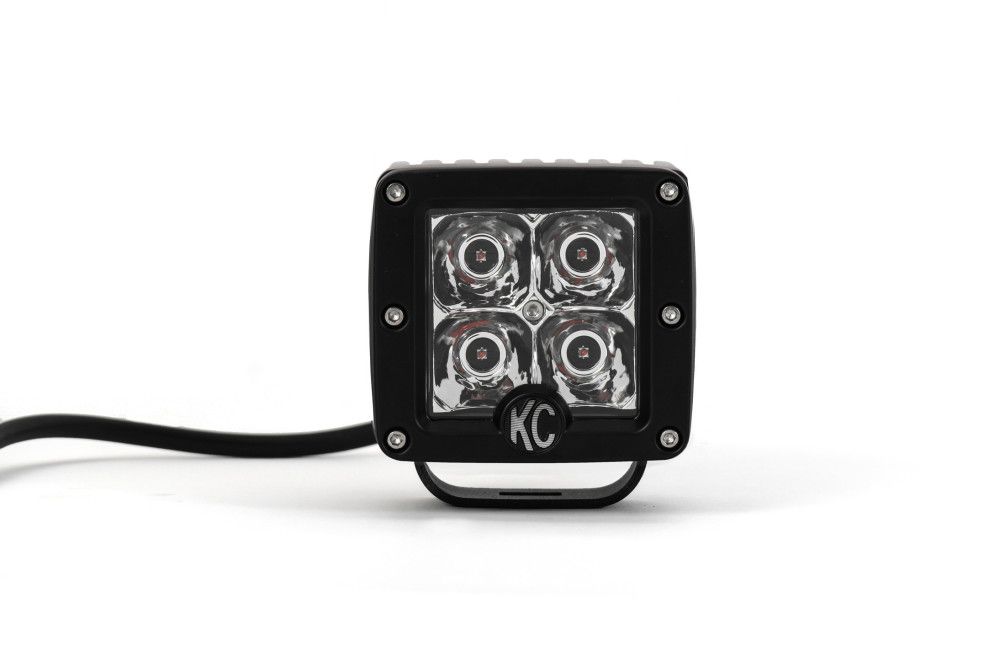

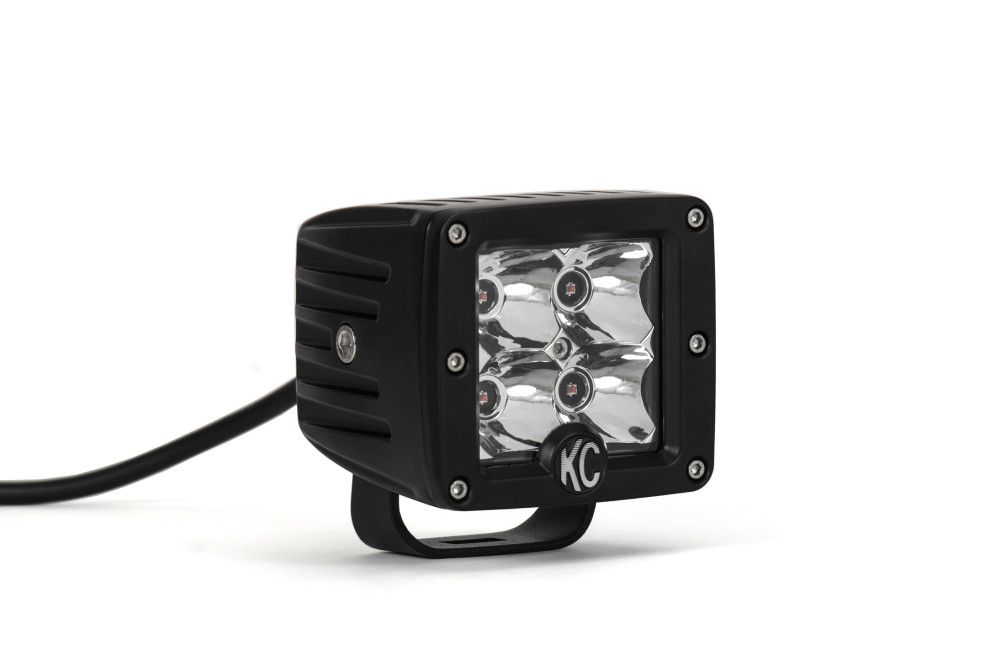

KC HiLiTES 3" C-Series C3 LED system features efficient, high power CREE LEDs in a 8° Spot Beam pattern, for focused width and distance. Air cooled finned aluminum housing and Amber Lexan lens. Pair pack includes complete wiring kit.

FEATURES
-2 x 3" 12W Amber C-SERIES C3 LED lights
-Die-Cast Aluminum Housing
-8° Spot Beam Pattern Optics
-On-Board Thermal Management for Light Efficiency

LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: 1,080 lm
-Lux @ 10 Meters: Spot- 120 lx
-Candela: Spot- 12,000 cd
-Beam Distance (meters): Spot- 219m

SPECIFICATIONS (PER LIGHT)
-Wattage: 12W
-LED Source: CREE XBD
-Color: Amber
-Amp Draw: 1.0A
-Voltage: 9V-32V
-IP Rating: IP67
-Product Dimensions: W - 3.22" x H - 3.42" x D - 3.14"

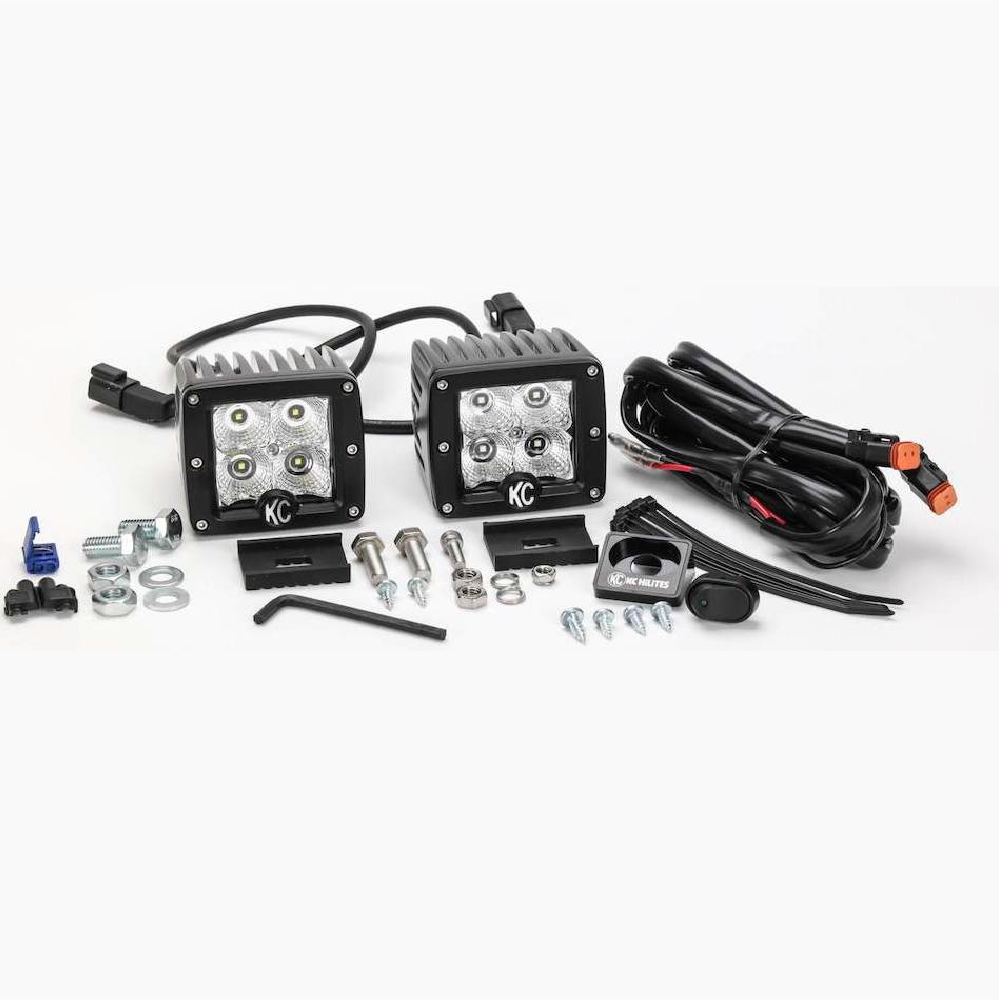

PARTS INCLUDED
-(2) C3 LED Lights
-Deluxe Wiring Harness
-Die-Cast Mounting Brackets with hardware

PERFORMANCE OUTPUT AND CLARITY
The C-Series LED C3 lights use a forward facing CREE LED design delivering 1,080 Lumens of output with maximum power efficiency. They are perfect for front bumper, windshield, grille, and reverse light applications.

HIGH PERFORMANCE MEETS AFFORDABILITY
C-Series LED C3 lights feature a die-cast aluminum housing, aluminum core PCBs with thermal management, and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency, stability and reliability.

SPOT OR FLOOD BEAM PATTERNS
When it comes to total road coverage, the C-Series LED C3 lights feature either spot or flood reflectors for maximum forward distance and increased peripheral illumination along road edges.
Spot Beam- Provides focused bright light for maximum forward distance and high speed visibility.

NOTE: This light has a amber LED so the lens will still be clear. You need to power on the light to see the amber color

Shipping & Returns

Drop shipped from manufacturer.

Specs

SKU - 0315 Weight - 3.500000 Type - C3 Family / Series - C-Series LED Product Dimensions - W - 3.22" x H - 3.42" x D - 3.14" Material - Aluminum Alloy Finish - Black Mount Location - A-Pillar / Ditch / Windshield, Bumper, Rear / Trunk UPC - 084709003159 Candela - 12,000 cd Color - Black DOT Compliant - No In The Box - 2 x 3" C3 LED Amber Spot Beam Lights, Deluxe Wiring Harness with DT Weatherproof Connectors, Illuminated LED Light Switch, Mounting Hardware IP rating - IP67 Beam Pattern - Spot Beam Distance - 219 m SAE/ECE - No Light Color - Amber Lens Color - Clear Light Temperature - 3000K Lumens - 1,080 lm Lux - 120 lx Wattage - 24W Voltage - 9V-32V Amp Draw - 1.0 a Prop 65 - No Size - 3"
