Dobinsons

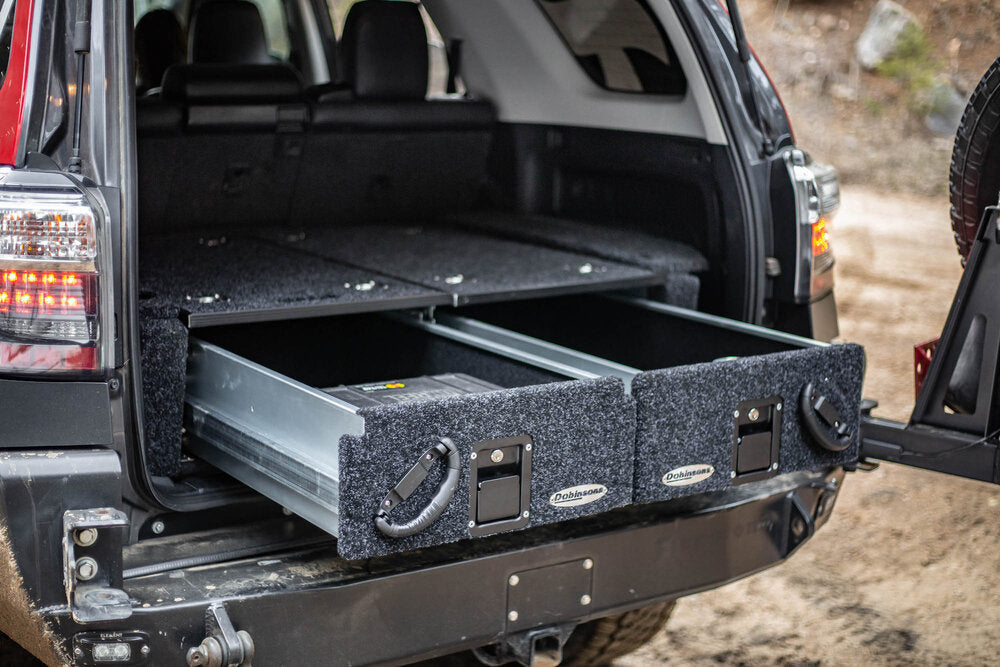

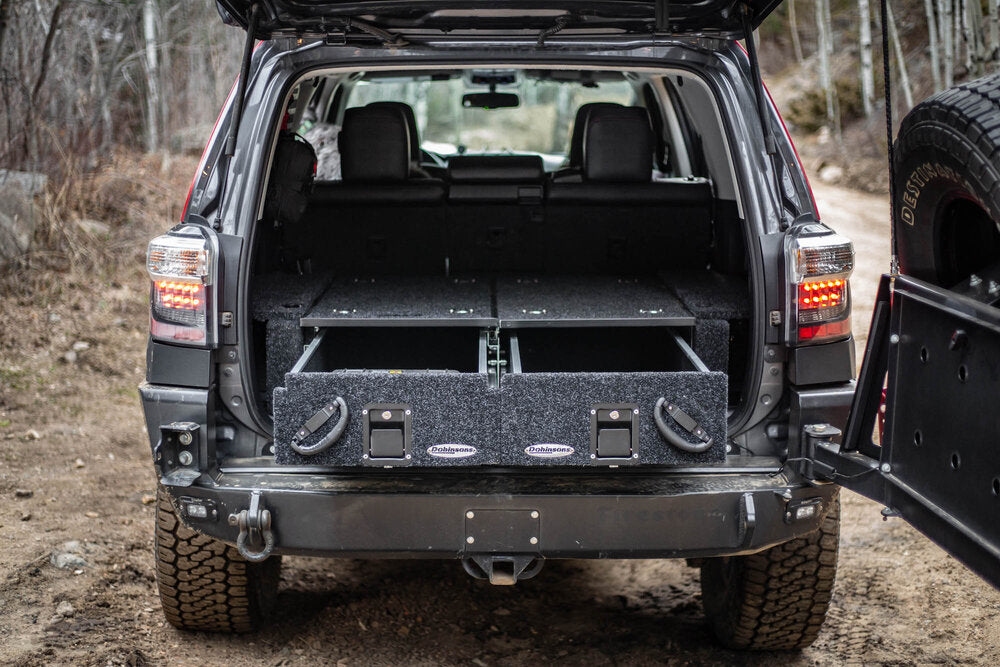

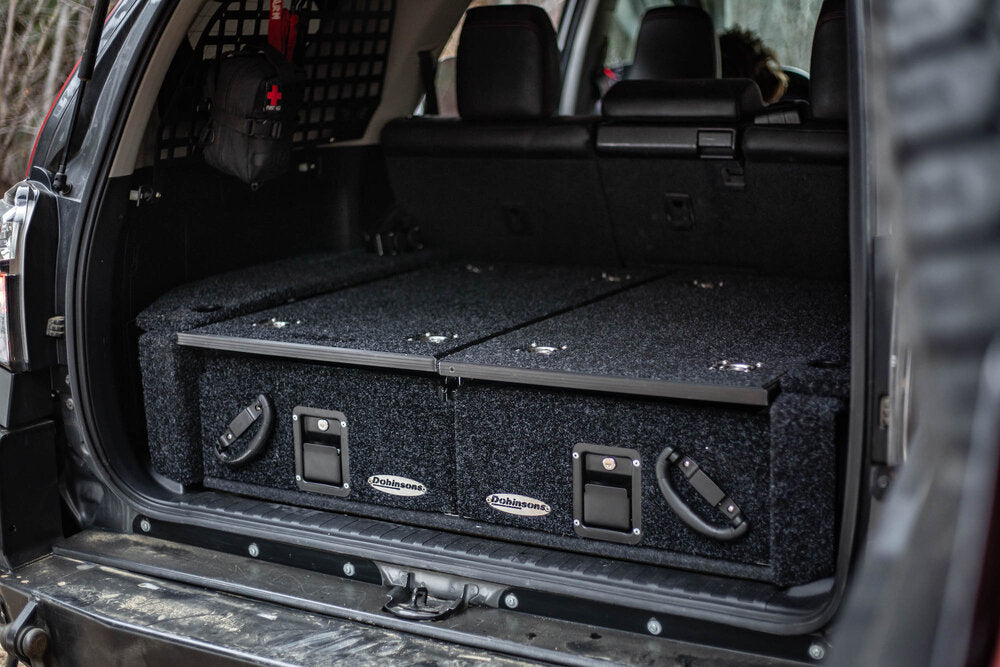

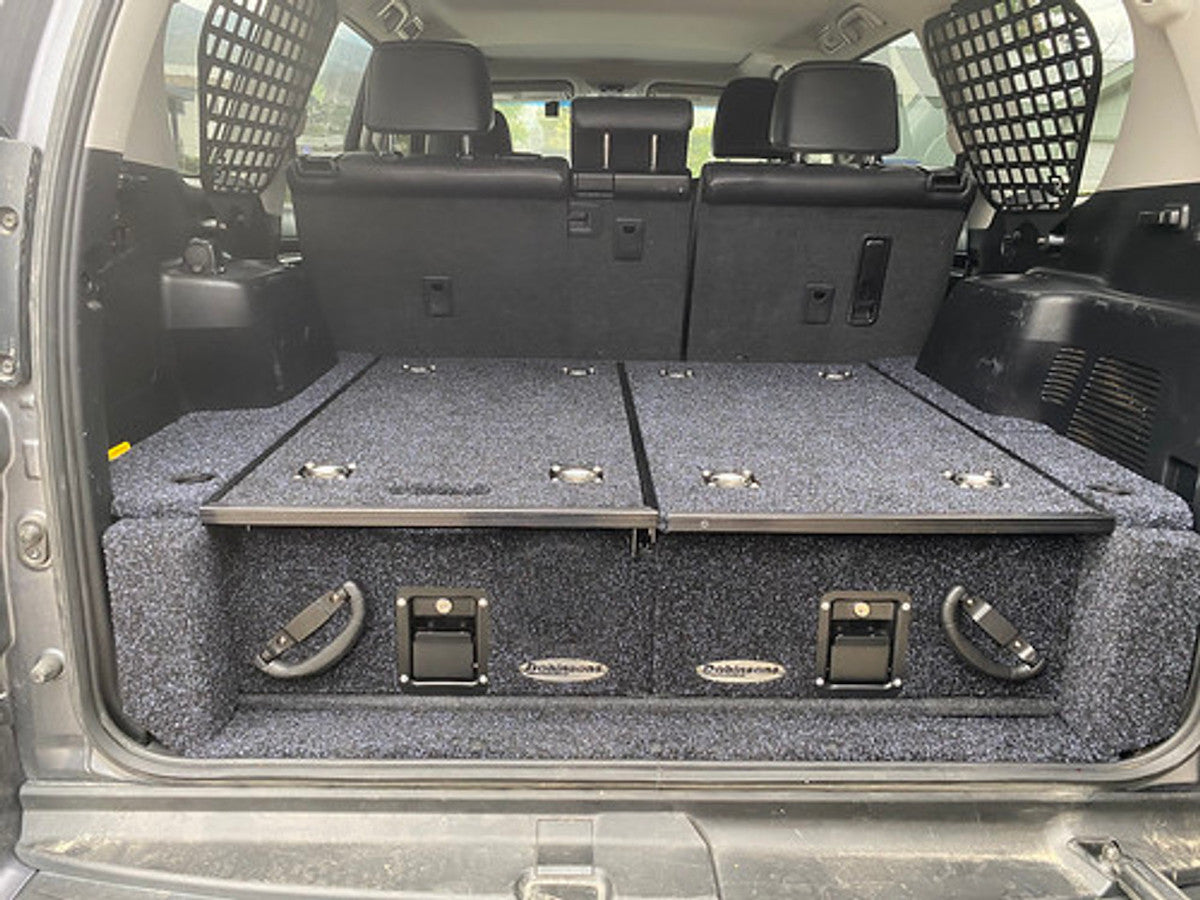

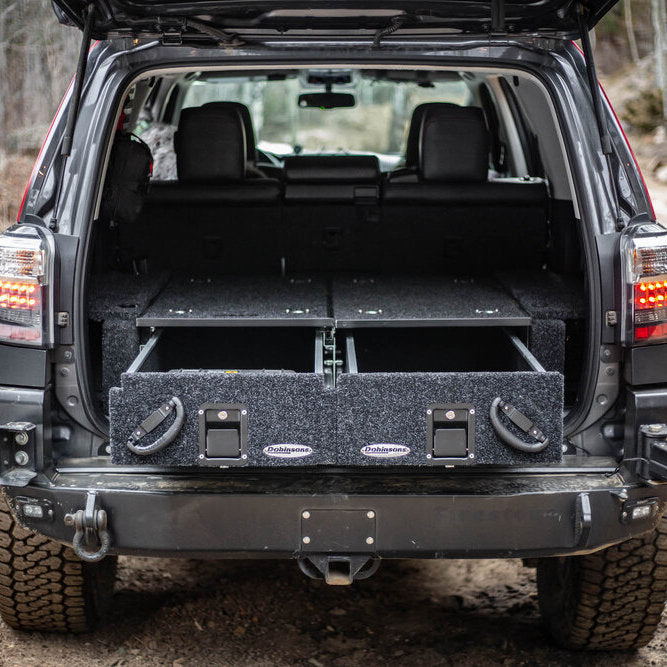

Dobinsons Rear Drawer System (Dual)

Dobinsons Rear Drawer System (Dual)

$1,465.00 USD
$1,465.00 USD
Sale Sold out
Size
Details
  • Weight Capacity
    • 330LB Drawer Capacity on Heavy Duty Roller Bearing System
    • 220lb Fridge Slide Capacity
  • Built in Heavy Duty Fridge Slide
  • 8 x Heavy Duty Stainless Steel Tie Down Points
  • 1.6mm Zinc Plated Robust Steel Construction
  • Aluminum Edging Protection
  • Heavy duty lockable latches
  • 12mm Heavy Duty Ply Wood Panels with Marine Carpet Covering
  • For Replacement Bearings use part numbers
    • 608-RS - 8mmx22mmx7mm
    • 6200-2RS - 10mmx30mmx9mm
  • Shipping is to nearest Freight Terminal or to a Commercial address with a loading dock or forklift. Residential delivery add

Shipping & Returns

Drop shipped from manufacturer.

Specs

Consists of:

1 x Drawer base unit (SSDR005)
1 x Toyota Land Cruiser 200 Drawer Deck Completion Set (SSDS103)
1 x Wing Set (SSWS003)
2 x Push to Close Latch with 2 keys per lock
3 x Accessory channels
6 x Eye Nuts for accessory channels
Installation Hardware includes 4 turnbuckles to secure unit to vehicle
Fitting instructions

Materials used:

Black powder coated steel - Drawer Bins and FrameStainless Steel - Mounting Hardware
Nylon Carpet & Laminated Plywood - Top Deck and Deck Set

Product Dimensions:

895mm (35.2") L x 1424mm (56.1") W x 335mm (13.2") H

Internal Drawer Dimensions:
817mm (32.2") L x 386mm (15.2") W x 213mm (8.4") H

Weight:

77.42kg (170.7lbs)

Load Rating:

113Kg (250lbs) per Drawer
